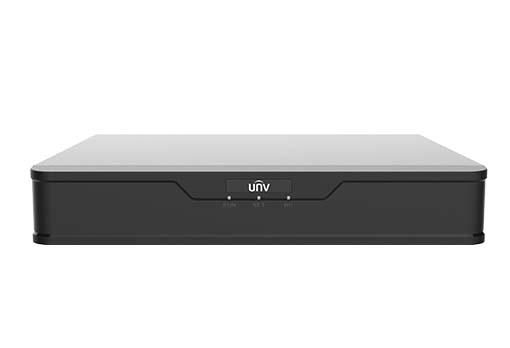

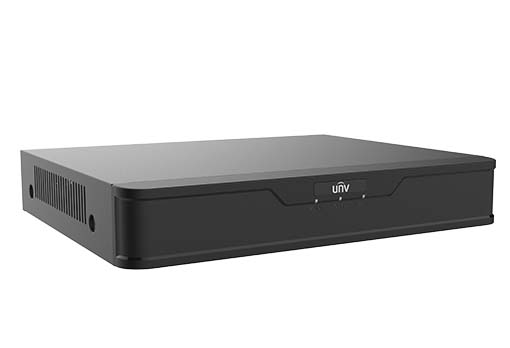

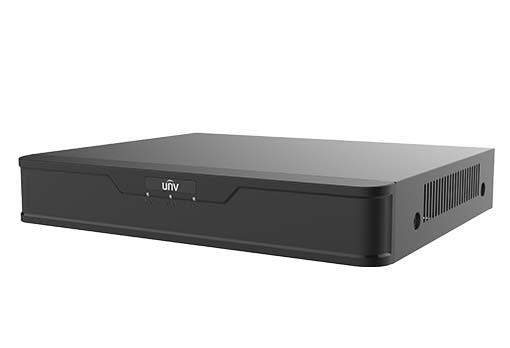

| Model | XVR301-16G3 |
| Video/Audio Input |
| Analog Video Input | 16-ch, BNC |
| IP Video Input | 8-ch(up to 16-ch after analog camera conversion) |
| Supported Analog Camera Types | Support AHD input: 5MP@12fps 4MP@15fps 1080P@30fps 720P@30fps Support TVI input: 5MP@12fps 4MP@15fps 1080P@30fps 720P@30fps Support CVI input: 1080P@30fps 720P@30fps Support CVBS input |
| Audio Input | 1-ch, RCA |
| Audio Compression | G.711U |
| Video/Audio Output |
| VGA Output | 1920x1080/60Hz, 1920x1080/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz |
| HDMI Output | 1920x1080/60Hz, 1920x1080/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz |
| Audio Output | 1-ch, RCA |
| Synchronous Playback | HD:8-ch SD:16-ch |
| Live view display | HDMI/VGA: 1/4/6/8/9/16/25 |
| Two-way Audio | 1-ch, RCA |
| Snapshot |
| FTP/Schedule/Event Snapshot | Schedule snapshot is not supported 16-ch snapshot, up to 704*576 resolution |
| Network |
| Incoming Bandwidth | 40Mbps (up to 56Mbps after all analog camera conversion) |
| Outgoing Bandwidth | 64Mbps |
| Remote Users | 128 |
| Protocols | TCP/IP, P2P, UPnP, DHCP, HTTP, HTTPS, DNS, DDNS, SMTP |
| Browser | IE(IE10/11) for Windows Firefox (version 52.0 and above) for Windows Chrome(version 45 and above) for Windows Edge(version 79 and above) for Windows |
| Recording Resolution | 5MP Lite/4MP Lite /1080P Lite/720P/D1/CIF |
Recording Frame Rate | Main stream: | Sub stream: |
| 5MP Lite@6fps | D1@6fps |
| 4MP Lite@8fps | D1@8fps |
| 1080P Lite@12fps | D1@12fps |
| 720P@12fps | D1@12fps |
| Audio Sample Rate | 8KHz,16 bit per channel |
| Audio Bit Rate | 64Kbps per channel |
| Decoding |
| Capability | Analog: 8 x 5MP Lite@6, 8 x 4MP Lite@8, 8 x 1080P Lite@12 IP: 1 x 8MP@30, 2 x 4MP@30, 4 x 1080P@30 |
| Hard Disk |
| SATA | 1 SATA interface |
| Capacity | Up to 8TB for each HDD (The maximum HDD capacity varies with environment temperature) |
| Smart Alarm |
| VCA Detection | Ultra Motion Detection(UMD) for analog:8-ch |
| VCA Search | Behavior Search |
| General Alarm |
| General Alarm | Motion detection |
| Alert Alarm | IP Conflict, Network Disconnected, Disk offline, Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal |
| External Interface |
| Network Interface | 1 RJ45 10M/100M self-adaptive Ethernet Interface |
| USB Interface | Rear panel: 2 x USB2.0 |
| Serial Interface | 1 x RS485 |
| General |
| Power Supply | 12V DC Power Consumption: ≤ 10 W( without HDD ) |
| Working Environment | -10°C ~ + 55°C ( +14°F ~ +131°F ), Humidity ≤ 90% RH(non-condensing) |
| Dimensions(W×D×H) | 260mm ×226mm× 47mm (10.2" × 8.9"×1.8") |
| Weight ( without HDD ) | ≤1.1 Kg ( 2.42lb ) |
| Certification |
| Certification | UL CE FCC RoHS WEEE |
