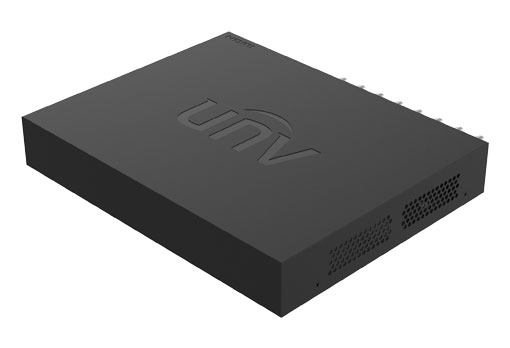

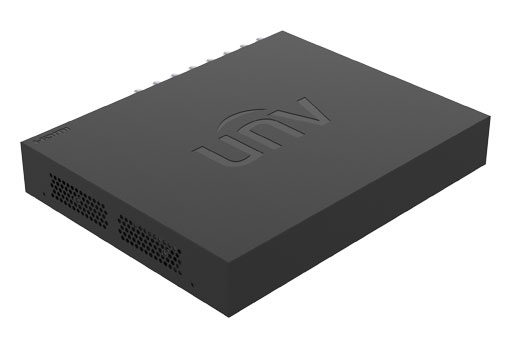

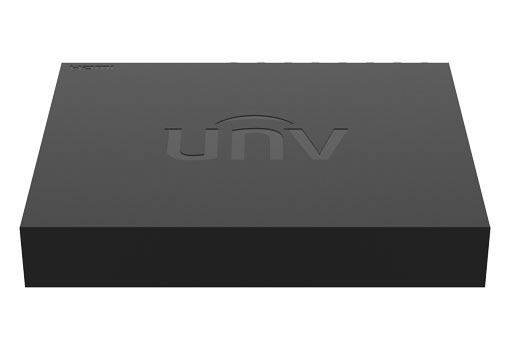

| Model | XVR301-16F |
| Video/Audio Input |
| Analog Video Input | 16-ch, BNC |
| IP Video Input | 2-ch(only IP up to 18ch), each channel up to 8MP |
| Supported Analog Camera Types | Support AHD input: 1080P@30fps 720P@30fps Support TVI input: 1080P@30fps 720P@30fps Support CVI input: 1080P@30fps 720P@30fps Support CVBS input |
| Audio Compression | G.711U |
| Video/Audio Output |
| VGA Output | 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz |
| HDMI Output | 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz |
| Synchronous Playback | HD:16-ch SD:16-ch |
| Live view display | HDMI/VGA: 1/4/6/8/9/16/25 |
| Snapshot |
| FTP/Schedule/Event Snapshot | Schedule snapshot is not supported 16-ch snapshot, up to 704*576 resolution |
| Network |
| Incoming Bandwidth | 24Mbps (Up to 56Mbps after all analog channel conversion) |
| Outgoing Bandwidth | 64Mbps |
| Remote Users | 128 |
| Protocols | TCP/IP, P2P, UPnP, NTP, DHCP, HTTP, HTTPS, DNS, DDNS, SMTP |
| Browser | IE(IE10/11) for Windows Firefox (version 52.0 and above) for Windows Chrome(version 45 and above) for Windows Edge(version 79 and above) for Windows |
| Encoding |
| Recording Resolution | 1080P Lite/720P/D1 |
Recording Frame Rate | Main stream | Sub stream |
| 1080P Lite@12fps | D1@12fps |
| 720P@15fps | D1@15fps |
| Audio Sample Rate | 8KHz,16 bit per channel |
| Audio Bit Rate | 64Kbps per channel |
| Decoding |
| Capability | Analog:16x 1080P Lite@12, 16x 720P@15 IP: 1 x 8MP@30, 2 x 4MP@30, 4 x 1080P@30, 8 x 720P@30,16 x D1@30 |
| Hard Disk |
| SATA | 1 SATA interface |
| Capacity | Up to 6TB for each HDD |
| Smart Alarm |
| VCA Detection | Ultra Motion Detection(UMD) for analog:8-ch |
| VCA Search | Behavior Search |
| General Alarm |
| General Alarm | Motion detection |
| Alert Alarm | IP Conflict, Network Disconnected, Disk offline, Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal |
| External Interface |
| Network Interface | 1 RJ45 10M/100M self-adaptive Ethernet Interface |
| USB Interface | Rear panel: 2 x USB2.0 |
| General |
| Power Supply | 12V DC Power Consumption: ≤ 10 W( without HDD ) |
| Working Environment | -10°C ~ + 55°C ( +14°F ~ +131°F ), Humidity ≤ 90% RH(non-condensing) |
| Dimensions(W×D×H) | 253mm × 212mm × 42mm (10.0" × 8.4" × 1.7") |
| Weight ( without HDD ) | ≤0.85 Kg ( 1.87lb ) |
| Certification |
| Certification | UL/CE/FCC /RoHS /WEEE |
