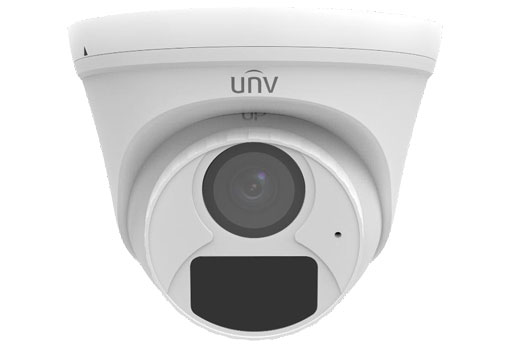

| Model | UAC-T115-AF28 | UAC-T115-AF40 |
| Sensor |
| Pixel | 5MP |
| Size | 1/2.7" |
| Minimum illumination | 0.02 lux (F2.0, AGC ON) 0 lux (IR ON) |
| Lens |
| Lens | 2.8mm | 4.0mm |
| Lens mount | M12 |
| Angle of view | H: 102.2° V: 53.9° D: 124.8° | H: 82.9° V: 46.1° D: 100.0° |
| Illuminator |
| Illuminator | One IR illuminator |
| Illumination distance | 20m |
| Lifetime | ≥60,000 hours |
| Video |
| Resolution | 5MP@25fps: 2880(H)×1620(V); 5MP@20fps: 2592(H)×1944(V); 5MP@12.5fps: 2592(H)×1944(V) 4MP: 2560(H)×1440(V) 1080P: 1920(H)×1080(V) |
| Frame rate | TVI: 5MP@20fps (default), 5MP@12.5fps, 4MP@25fps, 4MP@30fps, 1080P@25fps, 1080P@30fps AHD: 5MP@20fps, 4MP@25fps, 4MP@30fps, 1080P@25fps, 1080P@30fps CVI: 5MP@25fps, 4MP@25fps, 4MP@30fps, 1080P@25fps, 1080P@30fps CVBS: PAL, NTSC |
| Shutter time | PAL: 1/25s-1/50000s NTSC: 1/30s–1/50000s |
| Image |
| Exposure mode | Four modes: Global (default), BLC, HLC, DWDR |
| Day/Night | Three modes: Auto (default), Day, Night |
| Digital noise reduction | 2D |
| White balance | Two modes: Auto (default), Manual |
| WDR | DWDR |
| Smart IR | Support |
| Flip | Supports 180° horizontal flip, 180° vertical flip |
| Defog | N/A |
| Audio |
| Microphone | Built-in Mic |
| Camera audio | TVI: 5MP@20fps, 5MP@12.5fps, 4MP@25fps, 4MP@30fps, 1080P@25fps, 1080P@30fps CVI: 5MP@25fps, 4MP@25fps, 4MP@30fps |
| Interface |
| Power | 5.5mm power interface |
| Video output | BNC, supports TVI/AHD/CVI/CVBS |
| Operating environment |
| Temperature | -30°C to 60°C (-22°F to 140°F) |
| Humidity | ≤95% (RH, non-condensing) |
| Surge protection | 4kV |
| General |
| Power | DC 12V (±25%), with reverse polarity protection, Max 3.3W |
| Mount | Surface mount (default), optional backbox, wall mount bracket, pole mount bracket |
| Dimensions | Φ118mm*96mm (diameter*height) |
| Material | Plastic |
| Weight | 183g (0.40lb) |
| OSD menu language | 11 Languages English, German, Spanish(Latin America), French, Italian, Japanese, Korean, Polish, Portuguese(Brazil), Russian, Turkish |
| Certification |
| EMC | CE-EMC (EN 55032,EN 61000-3-3,EN IEC 61000-3-2,EN 55035) FCC (FCC 47 CFR part15 B) |
| Safety | CE-LVD (EN 62368-1) |
| Environment | CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU) |
| Protection | IP67 (IEC 60529) |
