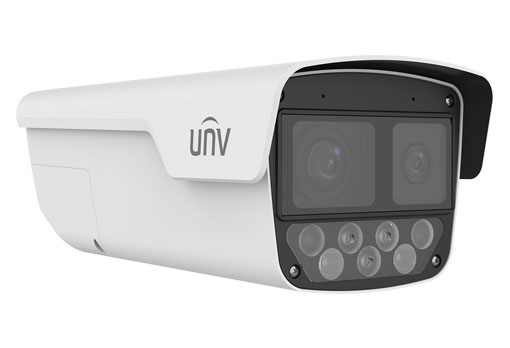

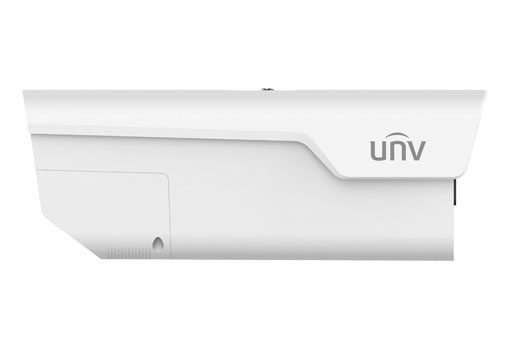

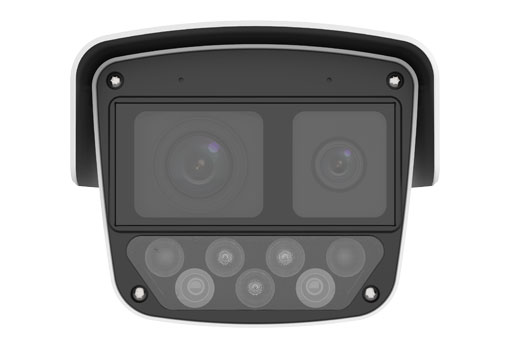

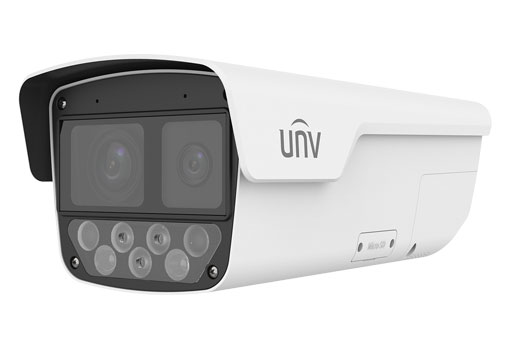

| | IPC28184EA-ADX5K-F40-I1 |
| Camera | |
| Sensor | Channel 1 : 1/1.8", 4.0 megapixel, progressive scan, CMOS Channel 2 : 1/1.8", 8.0 megapixel, progressive scan, CMOS |
| Min. Illumination | Channel 1 : Colour:0.0005lux (F1.0, AGC ON) Channel 2 : Colour:0.005lux (F1.6, AGC ON) 0 lux with IR |
| Day/Night | Channel 2 : IR-cut filter with auto switch (ICR) |
| Shutter | Auto/Manual, 1 ~ 1/100000s |
| Angle Adjustment | Channel 2 : Tilt: -10° to 10° (electric control , for installation and debugging) |
| WDR | 120dB |
| S/N | >56dB |
| Lens | |
| Lens type | Channel 1 : 4mm Channel 2 : 10-50mm @F1.6, AF automatic focusing and motorized zoom lens |
| Optical Zoom | Channel 2 : 5X |
| Iris | Channel 1 : Fixed aperture Channel 2 : DC-iris |
| Field of View (H) | Channel 1 : 94.7° Channel 2 : 33.8°~8.4° |
| Field of View (V) | Channel 1 : 50.3° Channel 2 : 18.8°~4.6° |
| Field of View (D) | Channel 1 : 116.5° Channel 2 : 39.9°~10.0° |
| DORI |
| DORI Distance | Lens (mm) | Detect (m) | Observe (m) | Recognize (m) | Identify (m) |
| 10 | 292.5 (959.6ft) | 117.0 (383.9ft) | 58.5 (191.9ft) | 29.3 (96.0ft) |
| 50 | 1237.5 (4060.0ft) | 495.0 (1624.0ft) | 247.5 (812.0ft) | 123.8 (406.0ft) |
| 4 | 79.1(259.6ft) | 31.7(103.9ft) | 15.8(51.9ft) | 7.9(26.0ft) |
| Illuminator |
| Warm Light Distance | Up to 30m (98.43ft) |
| IR Range | Up to 50m (164.0ft) IR range |
| IR Wavelength | 750nm |
| IR On/Off Control | Auto/Manual |
| Video |
| Video Compression | Ultra 265,H.265,H.264,MJPEG |
| Frame Rate | Channel 1 : Main Stream: 4MP(2688*1520),Max 30fps; Sub Stream: 2MP (1920*1080), Max 30fps; Third Stream: D1 (720*576), Max 30fps Channel 2 : Main Stream: 8MP(3840*2160),Max 30fps; Sub Stream: 2MP (1920*1080), Max 30fps; Third Stream: D1 (720*576), Max 30fps |
| U-code | Support |
| ROI | Up to 8 ROIs |
| Video stream | Triple streams |
| OSD | Up to 8 OSDs |
| Privacy Mask | Up to 8 areas(black/mosaic) |
| Image |
| White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 |
| Digital noise reduction | 2D/3D NR |
| Smart IR | Support |
| Flip | Normal/Flip Vertical/Flip Horizontal/180°/90°Clockwise/90°Anti-clockwise |
| HLC | Support |
| BLC | Support |
| Defog | Digital Defog |
| Intelligent (Channel 2 Only) |
Video Metadata | Support collecting the attributes and images of pedestrian, vehicle and non-motor vehicle, offer information for further data analysis |
| Smart intrusion Prevention | Support false alarm filtering, Cross Line detection, Intrusion detection, Enter Area detection, Leave Area detection |
| Events |
| Basic Detection | Motion detection, Audio detection, Tampering alarm |
| General Function | Watermark, IP Address Filtering, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication |
| Audio |
| Audio Compression | G.711U,G.711A |
| Audio Bitrate | 64 Kbps |
| Two way audio | Support |
| Suppression | Support |
| Sampling Rate | 8KHz |
| Storage |
| Edge Storage | Micro SD, up to 256 GB |
| Network Storage | ANR |
| Network |
| Protocols | IPv4,IPv6, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP,SSL/TLS |
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API,SDK |
| User/Host | Up to 32 users. 3 user levels: administrator, operator and common user |
| Security | Password protection, strong password, HTTPS encryption, Export operation logs, basic and digest authentication for RTSP, digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF |
| Client | EZStation EZView EZLive |
| Web Browser | Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above |
| Interface |
| Audio I/O | 2/1 |
| Alarm I/O | 3/2 |
| Serial Port | 1 RS485 |
| Built-in Mic | Support |
| Built-in Speaker | Support |
| Network | 1 x RJ45 10M/100M/1000M Base-TX Ethernet |
| Certifications |
| EMC | CE-EMC (EN 55032: 2015+A1:2020,EN 61000-3-3: 2013+A1: 2019,EN IEC 61000-3-2: 2019+A1: 2021,EN 55035: 2017+A11:2020) FCC (FCC CFR 47 part15 B, ANSI C63.4-2014) |
| Safety | CE LVD (EN 62368-1:2014+A11:2017) CB (IEC 62368-1:2014) UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01) |
| Environment | CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006) |
| Protection | IP66 (IEC 60529:1989+AMD1:1999+AMD2:2013) |
| General |
| Power | AC24V±25% |
| Power consumption: Max 31w |
| Dimensions (? x H) | Φ326x147x121mm(Φ12.8’’x5.8’’x4.8’’) |
| Weight | 2.11kg |
| Working Environment | -30°C ~60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) |
| Storage Environment | -40°C ~70°C (-40°F ~ 158°F), Humidity: ≤95% RH (non-condensing) |
| Surge protection | Support |
| Reset button | Support |
