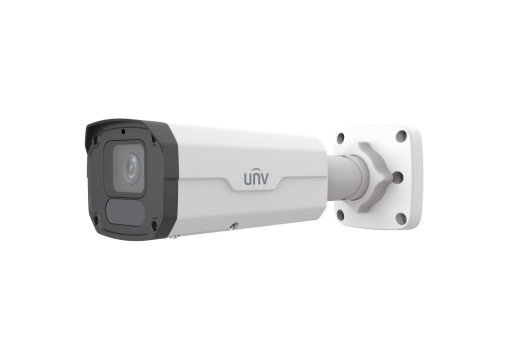

| | IPC2225SB-ADF28KM-I1 | IPC2225SB-ADF40KM-I1 | IPC2225SB-ADF60KM-I1 |
| Camera |
| Sensor | 1/2.7", 5.0 megapixel, progressive scan, CMOS |
| Min. Illumination | Colour:0.003 lux (F1.6, AGC ON) 0 lux with IR |
| Day/Night | IR-cut filter with auto switch (ICR) |
| Shutter | Auto/Manual, 1 ~ 1/100000s |
| WDR | 120dB |
| S/N | >56dB |
| Lens |
| Lens type | 2.8mm@F1.6 | 4.0mm@F1.6 | 6.0mm@F1.6 |
| Field of View (H) | 108.5° | 91.5° | 56.3° |
| Field of View (V) | 57.9° | 46.7° | 29.9° |
| Field of View (D) | 141.1° | 112.5° | 69.2° |
| DORI |
| DORI Distance | Lens (mm) | Detect (m) | Observe (m) | Recognize (m) | Identify (m) |
| 2.8 | 63.0(206.7ft) | 25.2(82.7ft) | 12.6(41.3ft) | 6.3(20.7ft) |
| 4.0 | 90.0(295.3ft) | 36.0(118.1ft) | 18.0(59.1ft) | 9.0(29.5ft) |
| 6.0 | 135.0(442.9ft) | 54.0(177.2ft) | 27.0(88.6ft) | 13.5(44.3ft) |
| Illuminator |
| IR Range | Up to 80m (262 ft) IR range |
| Wavelength | 850nm |
| IR On/Off Control | Auto/Manual |
| Video |
| Video Compression | Ultra 265, H.265, H.264, MJPEG |
| Frame Rate | Main Stream: 5MP (2880*1620),Max 30fps; Sub Stream: 720P (1280*720), Max 30fps; |
| Video Bit Rate | 128 Kbps~16 Mbps |
| ROI | Up to 8 areas |
| Video stream | Dual streams |
| OSD | Up to 8 OSDs |
| Privacy Mask | Up to 4 areas per scene |
| Image |
| White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 |
| Digital noise reduction | 2D/3D DNR |
| Smart IR | Support |
| Flip | Normal/Flip Vertical/Flip Horizontal/180°/90°Clockwise/90°Anti-clockwise |
| HLC | Support |
| BLC | Support |
| Defog | Digital Defog |
| Intelligent |
| Smart intrusion prevention | Support false alarm filtering: Cross Line detection, Intrusion detection(based on human body and vehicle detection) |
| Events |
| Basic Detection | Ultra Motion detection(based on human body and vehicle detection), Motion detection, Audio detection, Tampering alarm |
| General Function | Watermark, IP Address Filtering, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication |
| Audio |
| Audio Compression | G.711U, G.711A |
| Audio Bitrate | 64 Kbps,128kbps |
| Two-way Audio | Support |
| Suppression | Support |
| Sampling Rate | 8KHz,16KHz |
| Storage |
| Edge Storage | Micro SD, up to 256 GB |
| Network Storage | ANR,NAS(NFS) |
| Network |
| Protocols | IPv4,IPv6, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP, SSL/TLS |
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API, SDK |
| User/Host | Up to 32 users. 3 user levels: administrator, operator and common user |
| Security | Password protection, strong password, HTTPS encryption, basic and digest authentication for RTSP, digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF |
| Client | EZStation EZLive EZview |
| Web Browser | Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above |
| Interface |
| Audio I/O | 1/1 |
| Alarm I/O | 1/1 |
| Built-in Mic | Support |
| Network | 1 * RJ45 10M/100M Base-TX Ethernet |
| Certification |
| EMC | CE-EMC (EN 55032: 2015+A1:2020,EN 61000-3-3: 2013+A1: 2019,EN IEC 61000-3-2: 2019+A1: 2021,EN 55035: 2017+A11:2020) FCC (FCC CFR 47 part15, Subpart B, ANSI C63.4-2014) |
| Safety | CE LVD (EN 62368-1:2014+A11:2017) UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01) |
| Environment | CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU) |
| Protection | IP67 (IEC 60529:1989+AMD1:1999+AMD2:2013) IK10 (IEC 62262:2002) |
| General |
| Power | DC12V(±25%), PoE(IEEE 802.3af) |
| Power consumption: Max 8W |
| Power Interface | ? 5.5mm coaxial power plug |
| Dimensions | 245 x 87 x 86mm(9.6” x 3.4” x 3.4”) |
| Weight | 0.82kg(1.81lb) |
| Working Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) |
