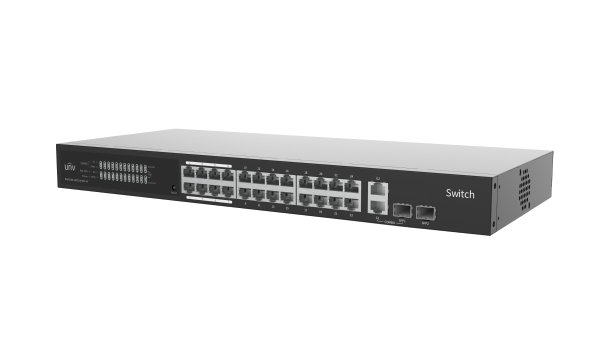

| | NSW2100-25GT1GP1GC-IN |
| Hardware Specification |
| Ports Type | 24 x 10/100/1000Mbps port (RJ45), 1 x 10/100/1000Mbps port (RJ45) , 1 x Gigabit SFP, 1 x Gigabit Combo |
| Switching capacity | 54Gbps |
| Forwarding performance | 40.176Mpps |
| Packet Buffer | 4 M bit |
| MAC | 8K |
| Dimensions (W×D×H) | 440*189.8*44mm |
| Power Supply | AC: 100V to 240V, 50/60Hz |
| Max.Power | 18W |
| Cooling Fans | 0 |
| Weight | 1.78kg |
| Operating Temperature | 0°C to 45°C (32°F to 113°F) |
| Operating Humidity | 10% to 90% (noncondensing) |
| Indicator | Power: Off: Abnormal power input.
Green: Normal power input.
Link/Act: Off: Disconnected to the port.
On: Connected to the port.
Blinking: Transmitting data.
|
| Software Specification |
| Ethernet | Supports full duplex, half duplex, and auto-negotiation working modes. Supports enabling/disabling ports. Supports port auto-negotiation rate. Supports port flow statistics. |
| VLAN | allows up to 32 VLANs with IDs from 1 to 4094. |
| MAC | Support static MAC, up to 32. |
| Loop Detection | Loop Detection |
| Security | Supports port isolation |
| Maintenance | Supports N:1 port mirroring. Supports device upgrade, factory settings restoration, configuration import, configuration export, and device restart on the software. |
| System | Allows to view the device name, current version, IP address, MAC address, DNS, etc. Allows to edit and manage the IP address and device name. |
| Compliance |
| NDAA Compliant | Support |
