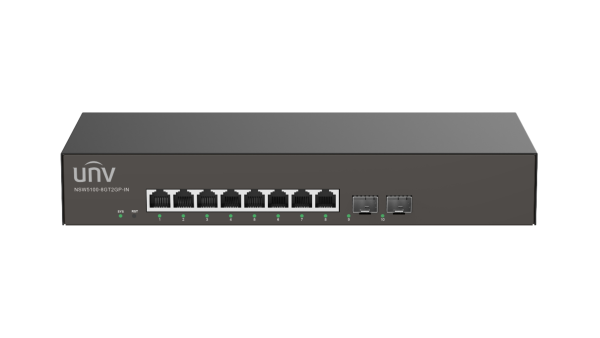

| | NSW5100-8GT2GP-IN |
| Hardware Specification |
| Ports Type | 8*10/100/1000Mbps RJ45 port, 2*1000Mbps SFP port |
| Switching capacity | 20 Gbps |
| Forwarding performance | 14.88 Mpps |
| Packet Buffer | 3M bits |
| MAC | 8K |
| Cooling Fans | 0 |
| Max.Power | 10W |
| Power Supply | AC: 100 to 240V, 50/60Hz |
| Weight | 0.90kg |
| Dimensions (W×D×H) | 280 × 125 × 44 mm |
| Operating Temperature | 0℃ to 45℃ |
| Operating Humidity | 5% to 95%, non-condensing |
| Indicator | PWR: Steady on: Normal power input Off: Abnormal power input LINK/ACT: Off: The port is disconnected Steady on: The port is connected Blinking: The port is transmitting data |
| Software Specification |
| Ethernet | Auto-negotiation, 10/100/1000M half-duplex/full-duplex Support port rate adjustment Support port flow control Support link aggregation(Static-LAG & LACP) Support port flow statistics Support port Loopback-detection Support enabling/disabling ports |
| MAC | 8K, auto-learning, auto-update |
| VLAN | Access/Trunk/Hybrid Default VLAN |
| Maintenance | Support a N :1 port mirroring Allow to import, export, back up, and restore factory defaults on the Web interface |
| Security | MAC/IP ACL Mac Limit |
| QoS | Support traffic classification based on DSCP/TOS Support speed limit on ports and streams Support SP, WRR queue scheduling |
| Reliability | Support STP, RSTP, Support ERPS( single ring) |
| Multicast | Support IGMP v1/v2 snooping |
