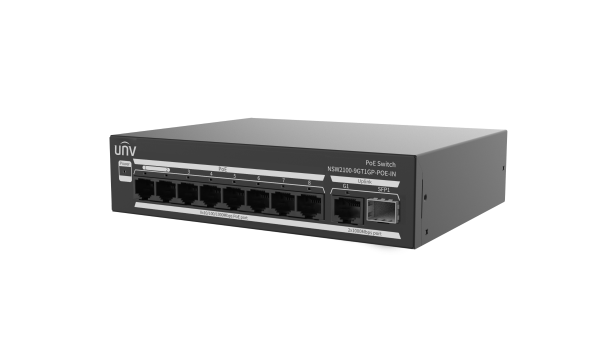

| | NSW2100-9GT1GP-POE-IN |
| Hardware Specification |
| Ports Type | 8x 10/100/1000Mbps PoE port (RJ45) 1 x 10/100/1000Mbps port (RJ45) 1 x Gigabit SFP |
| Switching capacity | 20Gbps |
| Forwarding performance | 14.88Mpps |
| Packet Buffer | 4 M bit |
| MAC | 8K |
| Prior Ports | 1 to 2 |
| Dimensions (W×D×H) | 169*132*40mm |
| Power Supply | AC: 100V to 240V, 50/60Hz |
| PoE Standard | IEEE 802.3af, IEEE 802.3 at |
| PoE Mode | ModeA (1236),ModeB (4578) |
| Max.PoE Power | Max capacity: 120W Maximum PoE power for single port: 30W |
| Max.Power | 125W |
| Cooling Fans | 0 |
| Weight | 0.85KG |
| Operating Temperature | 0°C to 45°C (32°F to 113°F) |
| Operating Humidity | 10% to 90% (noncondensing) |
| Indicator | Power: Off: Abnormal power input. Green: Normal power input. Yellow: The total PoE power is higher than 85% of the total power of the device. Link/Act: Off: Disconnected to the port On: Connected to the port. Blinking: Transmitting data. |
| Software Specification |
| Ethernet | Supports full duplex, half duplex, and auto-negotiation working modes Supports enabling/disabling ports Supports port auto-negotiation rate Supports port flow statistics Supports four link aggregation groups (up to eight ports). |
| VLAN | allows up to 10 VLANs with IDs from 1 to 4094 |
| MAC | Support static MAC, up to 32. |
| POE | Allows to view PoE status and enable/disable PoE power supply in the APP |
| Loop Detection | Loop Detection |
| Security | Supports port isolation |
| Maintenance | Supports N:1 port mirroring. Supports device upgrade, factory settings restoration, configuration import, configuration export, and device restart on the software.
|
| System | Allows to view the device name, current version, IP address, MAC address, DNS, etc. Allows to edit and manage the IP address and device name. |
| Compliance |
| NDAA Compliant | Support |
