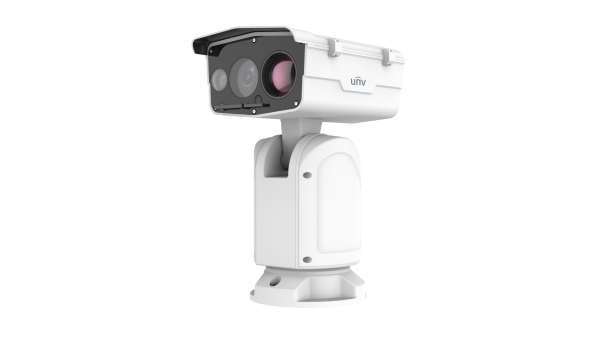

| | TIC7626EL-GAF75-4X56-VH1 |
| Channel | Optical | Thermal |
| Camera |
| Max Resolution | 4 MP | 2 MP |
| Original Resolution | N/A | 640 × 512 |
| Sensor | 1/1.8" CMOS | Vanadium oxide uncooled focal plane arrays |
| Min. Illumination | Colour : 0.0003lux(F1.2, AGC ON) B/W : 0.0001lux(F1.2, AGC ON) 0 Lux with Laser | N/A |
| Day/Night | IR-cut filter with auto switch (ICR) | N/A |
| Pixel Size | N/A | 12 um |
| NETD | ≤ 40 mk@F1.0@25 ℃ |
| Shutter | Auto/Manual, 1 to 1/100000 s |
| WDR | 120 dB |
| S/N | >52 dB |
| Lens |
| Focal Length | 6 ~ 336 mm | 75mm |
| Optical Zoom | 56X | N/A |
| Iris | F1.2 to F4.6 | F1.0 |
| Field of View (H) | 57.9°~ 1.6° | 6.1° |
| Field of View (V) | 34.6°~ 0.9° | 4.8° |
| Field of View (D) | 71.2°~ 1.9° | 7.2° |
| DORI |
| DORI Distance (Detect) | 155.5m(510.1ft)~4829.4m(15844.5ft) | N/A |
| DORI Distance (Observe) | 62.2m(204.0ft)~1931.8m(6337.8ft) | N/A |
| DORI Distance (Recognize) | 31.1m(102.0ft)~965.9m(3168.9ft) | N/A |
| DORI Distance (Identify) | 15.5m(51.0ft)~482.9m(1584.4ft) | N/A |
| Illuminator |
| Illumination Distance (IR) | Up to 800m(2624.7ft) | N/A |
| Video |
| Video Resolution | Main Stream: 4MP (2688×1520): Max.60fps; Sub Stream: 2MP (1920×1080): Max.60fps; Third Stream: D1(720 x 576): Max.60fps; | 1080P(1920*1080), Max.30fps |
| Video Compression | Ultra 265, H.265, H.264, MJPEG |
| Video Bit Rate | 128 Kbps to 16 Mbps |
| U-code | Support |
| ROI | Support |
| Video Stream | Triple streams |
| OSD | Up to 8 OSDs |
| Privacy Mask | 24 areas, up to 8 areas per scene | N/A |
| Image |
| White Balance | Auto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2 | N/A |
| Digital Noise Reduction | 2D/3D DNR |
| Flip | Normal, Flip vertical, Flip horizontal, 180° |
| Defog | Digital defog, Optical defog | N/A |
| Low Illumination Characteristics | ColorHunter with Wise-ISP |
| Intelligent |
| Smart Intrusion Prevention | Cross line detection, intrusion detection (support false alarm filtering and the classification of human, non-motor vehicle and vehicle) | Cross line detection, intrusion detection, enter area detection, leave area detection (support false alarm filtering and the classification of human and vehicle) |
| Smoke Detection | Support | N/A |
| Auto Tracking | Support tracking targets automatically, capturing detailed information at a distance |
| Detection distance for vehicles (4 × 1.4 meters) | N/A | 1500m |
| Detection distance for personnel (1.8 × 0.5 meters) | N/A | 750m |
| Events |
| Fire Detection | N/A | Support |
| Basic Detection | Motion detection, Tampering alarm, Audio detection | N/A |
| General Function | Watermark, IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication, HTTP authentication, Alarm input, Alarm output |
| Detection distance for fire (2 × 2 meters) | N/A | 4500m |
| UMD (Ultra Motion Detection) | Support | N/A |
| Audio |
| Audio Compression | G.711U, G.711A |
| Audio Bitrate | 128 Kbps |
| Two-way Audio | Support |
| Sampling Rate | 16KHZ |
| Storage |
| Edge Storage | MicroSD, up to 512 GB |
| Network Storage | ANR, NAS (NFS) |
| Network |
| Protocols | IGMP, RTP, SMTP, IPv4, IPv6, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, 802.1x, SNMP, QoS, SSL/TLS, SSH |
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API, SDK |
| User/Host | Up to 32 users. 3 user levels: administrator, common user and operator |
| Client | EZStation, UNV-Link, UNV-Link Pro |
| PTZ |
| Pan Range | 360° (endless) |
| Pan Speed | 0.02°/s ~ 140°/s |
| Tilt Range | -90° ~ 45° |
| Tilt Speed | 0.02° ~ 50°/s |
| Number of Presets | 1024 |
| Preset Image Freeze | Support |
| Home Position | Support |
| Number of Presets (IPC) | 1024 |
| 3D Positioning | Support |
| Number of Patrol | 16 |
| Interface |
| Audio I/O | 1 Input: impedance 1 kΩ, amplitude 2.5 V [p-p], 1 Output: impedance 600 Ω, amplitude 2 V [p-p] |
| Alarm I/O | 7/2 |
| Serial Port | 1 × RS485 |
| Network | 1 × RJ45 10 M/100 M/1000 M Base-TX Ethernet + 1 × 100 M/1000 M SFP |
| Video Output | N/A | 1 BNC (for debugging) |
| General |
| Power | DC 48V±25%、DC 24V±15%、AC 24V±25% |
| Power Consumption | Max 135W |
| Power Interface | Wires with cold-pressed terminal |
| Dimensions | 366 x 283 x 509 mm (14.4" x 11.1" x 20.0")(L x W x H) |
| Weight | 17.98kg(39.64lb) |
| Working Environment | -40 ℃ to 70 ℃ (-40 ℉ to 158 ℉), Humidity: ≤ 95% RH (non-condensing) |
| Storage Environment | -40 ℃ to 70 ℃ (-40 ℉ to 158 ℉), Humidity: ≤ 95% RH (non-condensing) |
| Surge Protection | 6 KV |
| Reset Button | Support |
| RTC | Support |
| Web Client Language | 22 Languages: Traditional Chinese, English, Simplified Chinese, Polish, German, Russian, French, Korean, Dutch, Czech, Portuguese (Europe), Portuguese (Brazil), Japanese, Thai, Turkish, Spanish (Latin America), Spanish (Europe), Hungarian, Italian, Vietnamese, Arabic, Slovak |
| Certification |
| Protection | IP66 |
| Environment | CE-RoHS (2011/65/EU;(EU)2015/863);WEEE(2012/19/EU) |
| EMC | CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035) FCC(FCC47CFRpart15B) |
| Live View |
| OSD Font | Vector |
| OSD Character Number | 40 |
