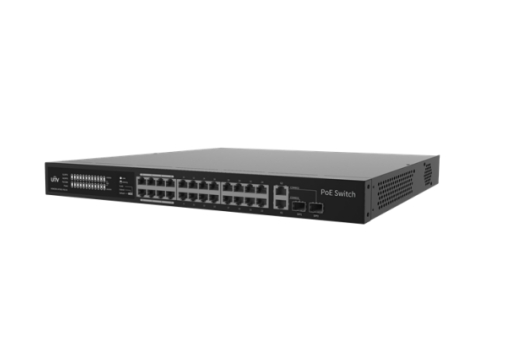

| Model | NSW2020-24T2GC-S-POE-IN |
| Hardware Specification |
| Ports Type | 24×100Mbps PoE ports (RJ45) 2×1000Mbps SFP port 2×1000Mbps RJ45 ports |
| Standards | IEEE802.3, IEEE802.3u, IEEE802.3z, IEEE802.3ab, IEEE802.3x, IEEE802.3af, IEEE802.3at, IEEE802.3az |
| Switching capacity | 8.8 Gbps |
| Forwarding performance | 6.55Mpps |
| Packet Buffer | 4 M bit |
| MAC | 16K |
| Max. PoE Power | Max capacity: 370 W, Max capacity for single port: 30 W |
| Power supply | AC: 100?240 V, 50/60 Hz |
| Prior Ports | 1 to 8 |
| Max.Power | 390W |
| Storage Temperature | ?40 ℃ to 70 ℃ |
| Operating temperature | -10 ℃ to 50 ℃ (14 ℉ to 122 ℉) |
| Indicator | POWER Steady on: AC input is normal, POWER Off: No AC input, PoE Off: No PoE power supply, PoE Steady on: PoE power supply is normal, PoE?MAX off: The POE power supply power of the whole machine is less than 80% of the specification, PoE?MAX Steady on : The POE power supply power of the whole machine is greater than 85% of the specification, LINK/ACT Off: No link, LINK/ACT Steady on: Linked, LINK/ACT Flashing: Transmitting data |
| Cooling Fans | 1 |
| Mean Time Between Failure (MTBF) | > 50000 hours |
| Dimensions (W×D×H) | 440*245*44mm |
| Ports | 24 ports + 2×1000Mbps SFP port + 2×1000Mbps RJ45 ports |
| Weight | 2.90KG |
| Storage humidity | 5%~90% (non?condensing) |
| Operating humidity | 10%~90% (non?condensing) |
| Working Mode | Default (Normal mode) : All ports can communicate with each other, VLAN (Secure mode): Downlink ports can communicate only with uplink ports. Enabling PD keepalive function, the switch will restart the IPC via PoE power when the IPC sends no message in a period of time, Extend (Surveillance mode): Transmission distance up to 250 meters. Downlink ports can communicate only with uplink ports |
| Hardware Specification |
| PoE Mode | 802.3at/af , ModeA : (1/2+, 3/6?), ModeB : (4/5+, 7/8?) |
