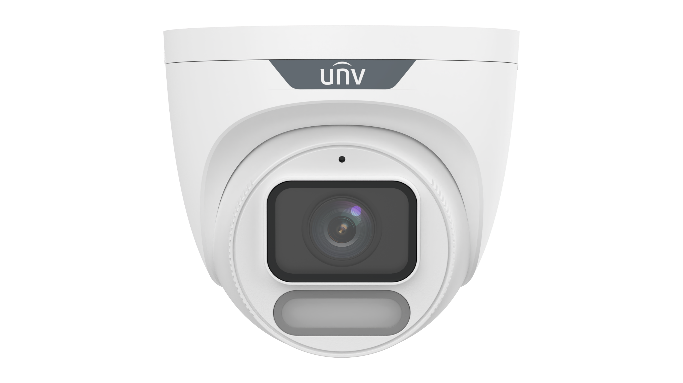

| Model | IPC3626LE-ADF28K-WP |
| BOM |
| BOM | 0235UG5F |
| Camera |
| Max Resolution | 6 MP |
| Sensor | 1/1.8" CMOS |
| Min. Illumination | Color: 0.0003 Lux (F1.0, AGC ON) |
| Shutter | Auto/Manual, 1 ~ 1/100000s |
| Adjustment Angle | Pan: 0° to 360°, Tilt: 0° to 75°, Rotate: 0° to 360° |
| S/N | >52 dB |
| WDR | 120 dB |
| Case Type | Turret |
| Lens |
| Focal Length | 2.8 mm |
| Iris Type | Fixed |
| Iris | F1.0 |
| Field of View (H) | 110.4° |
| Field of View (V) | 60.5° |
| Field of View (D) | 115.2° |
| Lens Type | Fixed |
| DORI |
| DORI Distance (Lens) | 2.8 mm |
| DORI Distance (Detect) | 43.4 m (142.4 ft.) |
| DORI Distance (Observe) | 17.4 m (57.1 ft.) |
| DORI Distance (Recognize) | 8.7 m (28.5 ft.) |
| DORI Distance (Identify) | 4.3 m (14.1 ft.) |
| Illuminator |
| Supplemental Light | Warm light |
| Light On/Off Control | Auto/Manual |
| Illumination Distance (Warm Light) | 30 m (98.4 ft.) |
| Video |
| Video Compression | Ultra 265, H.265, H.264, MJPEG |
| H.264 Code Profile | Baseline profile, Main profile, High profile |
| Frame Rate | Main Stream: 6MP (3072*2048),Max 25fps; 5MP (2880*1620), Max 25fps; 4MP (2560*1440), Max 25fps; 3MP (2304*1296), Max 30fps; 1080P (1920*1080), Max 30fps;Sub Stream: 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps |
| Video Bit Rate | 128 Kbps to 6144 Kbps |
| U-code | Support |
| OSD | Up to 4 OSDs |
| Privacy Mask | Up to 4 areas |
| ROI | Support |
| Video Stream | Dual streams |
| Frame Rate-Main Stream | 6MP (3072*2048),Max 25fps; 5MP (2880*1620), Max 25fps; 4MP (2560*1440), Max 25fps; 3MP (2304*1296), Max 30fps; 1080P (1920*1080), Max 30fps; |
| Frame Rate-Sub Stream | 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps; |
| Frame Rate Recommendation | 3072 x 2048@25 fps + 1280 × 720@25 fps |
| Image |
| Smart Illumination | Support |
| White Balance | Auto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2 |
| Digital Noise Reduction | 2D/3D DNR |
| Flip | Normal, Flip vertical, Flip horizontal, 180° |
| Dewarping | N/A |
| HLC | Support |
| BLC | Support |
| Defog | Digital defog |
| Image Stabilization | N/A |
| Low Illumination Characteristics | ColorHunter with Wise-ISP |
| Intelligent |
| Smart Intrusion Prevention (Lite) | Intrusion, crossline detection (both detection are based on human body and vehicle detection) |
| Multi-target Detection | N/A |
| Events |
| Basic Detection | Motion detection, Ultra motion detection, Tampering alarm, Audio detection |
| General Function | Watermark, IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication, HTTP authentication |
| Face Recognition | N/A |
| Motion Detection | Support |
| UMD (Ultra Motion Detection) | Support |
| Tampering Detection | Support |
| Audio Detection | Support |
| Intrusion (based on Human Body Detection) | Support |
| Voltage Detection | N/A |
| Active Deterrence | N/A |
| Audio |
| Audio Compression | G.711U, G.711A |
| Audio Bitrate | 64 Kbps |
| Two-way Audio | N/A |
| Suppression | Support |
| Sampling Rate | 8 kHz |
| Storage |
| Edge Storage | MicroSD, up to 512 GB |
| Network Storage | ANR, NAS (NFS) |
| Network |
| Protocols | IPv4, IPv6, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP, SSL/TLS |
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API, SDK |
| User/Host | Up to 32 users, 2 user levels: administrator and common user |
| Security | Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF |
| Client | EZStation, APP |
| Web Browser | Plug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+, Plug-in free live view: Chrome 57+, Firefox 58+, Edge 16+ |
| Interface |
| Audio I/O | N/A |
| Alarm I/O | N/A |
| Serial Port | N/A |
| Built-in Mic | Support |
| Built-in Speaker | N/A |
| WIFI | N/A |
| Network | 1 × RJ45 10 M/100 M Base-TX Ethernet |
| Video Output | N/A |
| Certification |
| EMC | CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035)FCC (FCC 47 CFR part15 B) |
| Safety | CE LVD (EN 62368-1)UL/CUL (UL 62368-1, CAN/CSA C22.2 No. 62368-1) |
| Environment | CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); |
| Protection | IP67 (IEC 60529) |
| General |
| Power | DC 12 V±25%, PoE (IEEE 802.3af) |
| Power Consumption | Max. 2.8 W |
| Power Interface | ?5.5 mm coaxial power plug |
| Dimensions | ?118 mm × 106 mm (?4.6" × 4.2") (? × H) |
| Weight | 0.48 kg (1.06 lb.) |
| Material | Metal |
| Working Environment | -30 ℃ to 60 ℃ (-22 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing) |
| Storage Environment | -30 ℃ to 60 ℃ (-22 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing) |
| Surge Protection | 4 KV |
| Reset Button | Support |
| Web Client Language | 13 Languages: English, Simplified Chinese, Polish, German, Russian, French, Korean, Dutch, Czech, Portuguese, Spanish, Spanish (Europe), Italian |
| RTC | N/A |
| Built-in DC12V Output | N/A |
| Axis | 3-Axis |
| Live View |
| Maximum Bitstream | 6 |
| Maximum Bandwidth | 50 Mbps |
| Plugin Free | Support |
| OSD Font | Lattice |
| OSD Color | Support |
| OSD Character Number | 40 |
| 3D Privacy Mask | N/A |
| PTZ |
| Number of Patrol | N/A |
| Snow Removal Mode | N/A |
| Patrol Recording | N/A |
| Number of Presets (IPC) | N/A |
| 3D Positioning | N/A |
| Other |
| Corridor Mode | N/A |
| Configurable |
| P/N | Support |
| Compliance |
| NDAA Compliant | Support |
