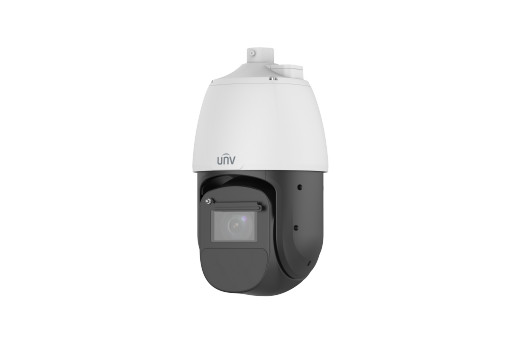

| Model | IPC6828EL?X42?W?VH1-AE |
| Camera |
| Sensor | 1/1.8" CMOS |
| Min. Illumination | Colour: 0.0005 Lux (F1.2, AGC ON) 0 Lux with IR |
| Day/Night | IR?cut filter with auto switch (ICR) |
| Shutter | Auto/Manual, 1 to 1/100000 s |
| WDR | 120 dB |
| S/N | >56 dB |
| Lens |
| Focal Length | 6.0~252mm |
| Optical Zoom | 42X |
| Digital Zoom | 16X |
| Iris | F1.2 to F4.6 |
| Field of View (H) | 57.96° ~ 2.15° |
| Field of View (V) | 34.61° ~ 1.21° |
| Field of View (D) | 71.30° ~ 2.54° |
| DORI |
| DORI Distance (Detect) | 107.2 m ~ 3330.6 m (351.8 ft ~ 10927.2 ft) |
| DORI Distance (Observe) | 42.9 m ~ 1332.2 m (140.7 ft ~ 4370.9 ft) |
| DORI Distance (Recognize) | 21.4 m ~ 666.1 m (70.4 ft ~ 2185.4 ft) |
| DORI Distance (Identify) | 10.7 m ~ 333.1 m (35.2 ft ~ 1092.7 ft) |
| Video |
| Video Compression | Ultra 265, H.265, H.264, MJPEG |
| Frame Rate | Main Stream: 8MP (3840*2160), Max 30fps Sub Stream: 2MP (1920*1080), Max 30fps Third Stream: D1 (720*576), Max 30fps |
| Video Bit Rate | 128 Kbps to 16 Mbps |
| IPC | Support |
| ROI | Support |
| Video Stream | Triple Streams |
| Privacy Mask | 24 areas, up to 8 areas per scene |
| OSD | Up to 10 OSDs |
| Events |
| Basic Detection | Motion Detection, Ultra Motion Detection, Tampering Alarm, Audio Detection, Object Removed, Object Left Behind |
| General Function | Watermark, IP Address Filtering, Access Policy, ARP Protection, RTSP Authentication, User Authentication, Alarm Input, Alarm Output |
| Audio |
| Audio Compression | G.711U, G.711A |
| Audio Bitrate | 128 Kbps |
| Two?way Audio | Support |
| Suppression | Support |
| Sampling Rate | 16 kHz |
| Storage |
| Edge Storage | Micro SD, up to 512 GB |
| Network Storage | ANR, NAS (NFS) |
| Network |
| User/Host | Up to 32 users. 3 user levels: administrator, common user and operator |
| Protocols | SSH, IGMP, RTP, RTCP, SMTP, IPv4, IPv6, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTSP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, 802.1x, SNMP, QoS, SSL/TLS |
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T, Profile M), API, SDK |
| Security | Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, TLS 1.3, WSSE and Digest Authentication for ONVIF |
| Client | EZStation, UNV?Link, UNV?Link Pro |
| Web Browser | Plug?in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+, Plug?in free live view: Chrome 57+, Firefox 58+, Edge 16+ |
| Intelligent |
| Auto Tracking | Support, target filtering: human, non?motor vehicle and vehicle |
| Multi?target Detection | Support |
| Smart Intrusion Prevention | Cross line detection, intrusion detection, enter area detection, leave area detection (support false alarm filtering and the classification of human, non?motor vehicle and vehicle) |
| People Counting | Support People Flow Counting and Crowd Density Monitoring |
| PTZ |
| Route Patrol | 16 patrols, up to 32 actions for each patrol |
| Recorded Patrol | 16 patrols, up to 128 actions for each patrol |
| Number of Presets | 1024 |
| Preset Image Freeze | Support |
| Preset Patrol | 16 patrols, up to 64 presets for each patrol |
| Patrol Stay Time | 15 s to 1800 s |
| Home Position | Support |
| Pan Range | 360° (endless) |
| Pan Speed | 0.1°/s ~ 180°/s |
| Tilt Range | –15° ~ 90° (auto flip) |
| Tilt Speed | 0.1°/s ~ 180°/s |
| Image |
| White Balance | Auto, Outdoor, Fine Tune, Sodium Lamp, Locked, Auto2 |
| Digital Noise Reduction | 2D/3D DNR |
| Flip | Normal, Flip Vertical, Flip Horizontal, 180° |
| HLC | Support |
| BLC | Support |
| Defog | Digital Defog, Optical Defog |
| EIS | Support |
| Image Stabilization | EIS (Gyroscope) |
| Interface |
| Audio I/O | 1 Input: impedance 1 kΩ, amplitude 2.5 V [p?p], 1 Output: impedance 600 Ω, amplitude 2.5 V [p?p] |
| Alarm I/O | 7/2 |
| Serial Port | 1 * RS485 |
| Network | 1 × RJ45 10 M/100 M Base?TX Ethernet |
| Video Output | 1 BNC (For debugging) |
| Illuminator |
| Illumination Distance (IR) | 500m |
| IR On/Off Control | Auto/Manual |
| Wavelength | 850 nm |
| Certification |
| EMC | CE?EMC (EN 55032: 2015+ A11: 2020; EN IEC 61000?3?2: 2019; EN 61000?3?3: 2013+ A: 2019; EN 55035: 2017+ A11: 2020) |
| Safety | CE LVD (EN IEC 62368?1: 2020+ A11: 2020) |
| Environment | CE?ROHS (2011/65/EU;(EU)2015/863) |
| Protection | IP67 (IEC 60529:1989+AMD1:1999+AMD2:2013) |
| General |
| Power | AC24V ± 25%, DC24V ± 25%, PoE (IEEE802.3bt) |
| Power Consumption | Max 67 W |
| Power Interface | Wires with cold?pressed terminal |
| Dimensions | ? 226.7 x 440.3 mm (? 8.93" x 17.33") (? x H) |
| Weight | 6.9 kg (15.21 lb) |
| Working Environment | ?40 ℃ to 70 ℃ (?40 ℉ to 158 ℉), Humidity: ≤ 95% RH (non?condensing) |
| Storage Environment | ?40 ℃ to 70 ℃ (?40 ℉ to 158 ℉), Humidity: ≤ 95% RH (non?condensing) |
| Surge Protection | 6 KV |
| Reset Button | Support |
| Heater | Support |
