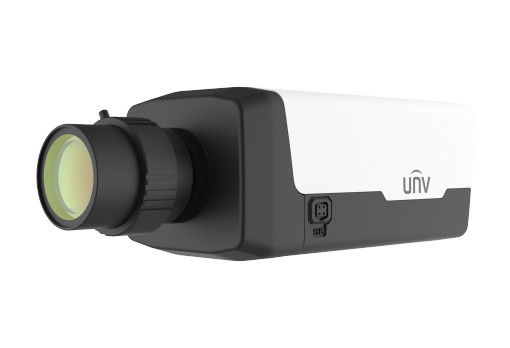

| Model | IPC544SE?DK?AE |
| Camera |
| Sensor | 1/1.8" CMOS |
| Min. Illumination | Colour:0.0005lux (F1.2, AGC ON) B/W: 0.0001Lux (F1.2, AGC ON) |
| Day/Night | IR?cut filter with auto switch (ICR) |
| Shutter | Auto/Manual, 1 to 1/100000 s |
| WDR | 120 dB |
| S/N | >56 dB |
| Lens |
| Lens Mount | C/CS |
| Iris | F1.2 |
| Video |
| Video Compression | Ultra 265, H.265, H.264, MJPEG |
| Frame Rate?Main Stream | 4MP (2688*1520), Max 30fps |
| Video Bit Rate | 128 Kbps to 16 Mbps |
| U?code | Support |
| Frame Rate?Sub Stream | 720P (1280*720), Max 30fps |
| ROI | Support |
| Video Stream | Triple Streams |
| OSD | Up to 8 OSDs |
| Privacy Mask | Up to 4 areas |
| Frame Rate?Third Stream | D1 (720*576), Max 30fps |
| Image |
| White Balance | Auto, Outdoor, Fine Tune, Sodium Lamp, Locked, Auto2 |
| Digital Noise Reduction | 2D/3D DNR |
| Flip | Normal, Flip Vertical, Flip Horizontal, 180°, 90° Clockwise, 90° Anti?clockwise |
| HLC | Support |
| BLC | Support |
| Defog | Digital Defog |
| Heatwave Reduction | N/A |
| Intelligent |
| Smart Intrusion Prevention | Cross line detection, intrusion detection, enter area detection, leave area detection (support false alarm filtering and the classification of human, non?motor vehicle and vehicle) |
| People Counting | Support People Flow Counting and Crowd Density Monitoring |
| Exception Detection | Object Removed, Object Left Behind, Scene Change |
| Events |
| Basic Detection | Motion Detection, Tampering Alarm, Audio Detection, Object Removed, Object Left Behind, Scene Change |
| General Function | Watermark, IP Address Filtering, Access Policy, ARP Protection, RTSP Authentication, User Authentication, HTTP Authentication, Alarm Input, Alarm Output |
| UMD (Ultra Motion Detection) | Support |
| Audio |
| Audio Compression | G.711U, G.711A |
| Audio Bitrate | 128 Kbps |
| Two?way Audio | Support |
| Suppression | Support |
| Sampling Rate | 16KHZ |
| Storage |
| Edge Storage | Micro SD, up to 512 GB |
| Network Storage | ANR, NAS (NFS) |
| Network |
| Protocols | SSH, IGMP, RTP, RTCP, SMTP, IPv4, IPv6, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTSP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, 802.1x, SNMP, QoS, SSL/TLS |
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API, SDK |
| User/Host | Up to 32 users. 3 user levels: administrator, common user and operator |
| Security | TLS 1.3, Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF |
| Client | EZStation, UNV?Link, UNV?Link Pro |
| Web Browser | Plug?in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+, Plug?in free live view: Chrome 57+, Firefox 58+, Edge 16+ |
| Interface |
| Audio I/O | 1 Input: impedance 1 kΩ, amplitude 2.5 V [p?p], 1 Output: impedance 600 Ω, amplitude 2.5 V [p?p] |
| Alarm I/O | 2/1 |
| Serial Port | 1 channel RS485 interface |
| Network | 1 × RJ45 10 M/100 M Base?TX Ethernet |
| Video Output | 1 BNC (For debugging) |
| Certification |
| EMC | CE?EMC (EN 55032: 2015+A1:2020,EN 61000?3?3: 2013+A1: 2019,EN IEC 61000?3?2: 2019+A1: 2021,EN 55035: 2017+A11:2020) FCC (FCC CFR 47 part15 B, ANSI C63.4?2014) |
| Safety | CE LVD (EN 62368?1:2014+A11:2017) UL (UL 62368?1, 2nd Ed., Issue Date: 2014?12?01) |
| Environment | CE?RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006) |
| General |
| Power | DC12V(±25%), AC24V(±25%), PoE(IEEE 802.3af) |
| Power Consumption | Max 8W |
| Power Interface | Two?core terminal block |
| Dimensions | 152 x 71 x 65 mm (6.0" x 2.8" x 2.6") (L x W x H) (excluding the lens) |
| Weight | 0.38kg (0.84lb) |
| Storage Environment | ?40 ℃ to 70 ℃ (?40 ℉ to 158 ℉), Humidity: ≤ 95% RH (non?condensing) |
| Working Environment | ?20 ℃ to 60 ℃ (?4 ℉ to 140 ℉), Humidity: ≤ 95% RH (non?condensing) |
| Surge Protection | 6 KV |
| Reset Button | Support |
| Web Client Language | 22 Languages: Traditional Chinese, English, Simplified Chinese, Polish, German, Russian, French, Korean, Dutch, Czech, Portuguese (Europe), Portuguese (Brazil), Japanese, Thai, Turkish, Spanish (Latin America), Spanish (Europe), Hungarian, Italian, Vietnamese, Arabic, Slovak |
