IPC3234SA-ADZK-PI-I2A-GE

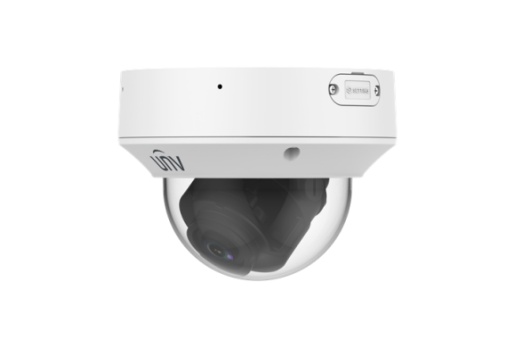

4MP WDR LightHunter IR Network Dome Camera

? High quality image with 4MP, 1/1.8" CMOS sensor
? 2688*1520@60fps in the main stream, deliver ultra high definition live
? Motorized lens with P iris, support accurate control of exposure
? Ultra 265, H.265, H.264, MJPEG
? Smart intrusion prevention, support false alarm filtering, include Cross Line, Intrusion, Enter Area, Leave Area detection
? People counting, support people flow counting and crowd density monitoring, suitable for different statistical scenarios
? Traffic monitoring, support capturing license plate and collect car information when the car passes tripwire
? Wise ISP technology, comprehensive improvement in image quality
? Up to 130 dB optical WDR (Wide Dynamic Range)
? DC12V or PoE (IEEE 802.3af) power supply
? Audio 1 in and 1 out, Alarm 1 in and 1 out
? IP67, IK10

Model	IPC3234SA-ADZK-PI-I2A-GE
Camera
Max Resolution	4 MP
Sensor	1/1.8" CMOS
Min. Illumination	Colour: 0.001 lux (F1.2, AGC ON) 0 lux with IR
Day/Night	IR?cut filter with auto switch (ICR)
Shutter	Auto/Manual, 1 to 1/100000 s
WDR	130 dB
Adjustment Angle	Pan: 0° to 355° Tilt: 0° to 70° Rotate: 0° to 355°
S/N	> 56 dB
Lens
Focal Length	2.7 to 13.5 mm
Optical Zoom	5X
Iris	F1.2
Field of View (H)	106.6° ~50°
Field of View (V)	56.4° ~ 27.9°
Field of View (D)	128.8° ~ 60.4°
Iris Type	P?iris
DORI
DORI Distance (Lens)	2.7 ~ 13.5 (mm)
DORI Distance (Detect)	98.6m (323.3ft) ~ 209.9 m (688.7ft)
DORI Distance (Observe)	39.4m (129.3ft) ~ 84.0 m (275.5ft)
DORI Distance (Recognize)	19.7m (64.7ft) ~ 42.0 m (137.7ft)
DORI Distance (Identify)	9.9m (32.3ft) ~ 21.0 m (68.9ft)
Illuminator
Illumination Distance (IR)	40 m (131.2 ft)
Wavelength	850 nm
IR On/Off Control	Auto/Manual
Video
Frame Rate?Main Stream	4MP (2688*1520), Max 60fps
Video Compression	Ultra 265, H.265, H.264, MJPEG
Frame Rate?Sub Stream	2MP (1920*1080), Max 30fps
Video Bit Rate	128 Kbps to 16 Mbps
U?code	Support
ROI	Up to 8 areas
Privacy Mask	Up to 8 areas (8 blacks/ 8 mosaics)
Video Stream	Triple Streams
OSD	Up to 8 OSDs
Frame Rate?Third Stream	D1 (720*576), Max 30fps
White Balance	Auto, Outdoor, Fine Tune, Sodium Lamp, Locked, Auto2, Area White Balance
Digital Noise Reduction	2D/3D DNR
Flip	Normal, Flip Vertical, Flip Horizontal, 180°, 90° Clockwise, 90° Anti?clockwise
Defog	Digital Defog
EIS	Support
BLC Auto	Support
Intelligent
People Counting	Support People Flow Counting and Crowd Density Monitoring
Exception Detection	Object Removed, Object Left Behind, Scene Change, Defocus Detection
Smart Intrusion Prevention	Cross line detection, intrusion detection, enter area detection, leave area detection (support false alarm filtering and the classification of human, non?motor vehicle and vehicle)
Traffic Monitoring	Support capturing car license picture and collect other car information when the car passes tripwire, Up to 4 lanes can be set, Two types of application mode avaliable: High/Low pole
Events
Basic Detection	Motion Detection, Ultra Motion Detection, Tampering Alarm, Audio Detection
General Function	Watermark, IP Address Filtering, Access Policy, ARP Protection, RTSP Authentication, User Authentication, HTTP Authentication, Alarm Input, Alarm Output
UMD (Ultra Motion Detection)	Support
Audio
Audio Compression	G.711U, G.711A
Audio Bitrate	128 Kbps
Two?way Audio	Support
Suppression	Support
Sampling Rate	8 kHz, 16 kHz
Storage
Edge Storage	Micro SD, up to 512 GB
Network Storage	ANR, NAS (NFS)
Network
Protocols	IGMP, SMTP, IPv6, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTSP, DNS, DDNS, NTP, UPnP, HTTP, HTTPS, 802.1x, SNMP, QoS, SSL/TLS, SSH, IPv4, RTP, RTCP, RTMP
Compatible Integration	ONVIF (Profile S, Profile G, Profile T, Profile M), API, SDK
User/Host	Up to 32 users. 3 user levels: administrator, common user and operator
Security	TLS 1.3, Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF
Client	UNV?Link, UNV?Link Pro, EZStation
Web Browser	Plug?in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+
Interface
Audio I/O	1 Input: impedance 1 kΩ, amplitude 2.5 V [p?p], 1 Output: impedance 600 Ω, amplitude 2.5 V [p?p]
Alarm I/O	1/1
Serial Port	1 channel RS485 interface
Built?in Mic	Built?in two mics
Network	1 × RJ45 10 M/100 M Base?TX Ethernet
Certification
EMC	CE?EMC (EN 55032, EN 61000?3?3, EN IEC 61000?3?2, EN 50130) FCC?SDoC (47 CFR Part15, Subpart B)
Safety	CE?LVD (EN IEC 62368?1) UL/CUL (UL 62368?1, CAN/CSA C22.2 No. 62368?1)
Environment	CE?RoHS (2011/65/EU;(EU)2015/863) WEEE (2012/19/EU)
Protection	IP67 (IEC 60529) IK10 (IEC 62262)
General
Power	DC12V (±25%) , PoE (IEEE 802.3af)
Power Consumption	Max 12W
Power Interface	?5.5 mm coaxial power plug
Dimensions	? 148 x 111.4 mm (? 5.8” x 4.4”) (? x H)
Weight	0.95kg (2.09lb)
Working Environment	?30 ℃ to 60 ℃ (?22 ℉ to 140 ℉), Humidity: ≤ 95% RH (non?condensing)
Storage Environment	?40 ℃ to 70 ℃ (?40 ℉ to 158 ℉), Humidity: ≤ 95% RH (non?condensing)
Surge Protection	6 KV
