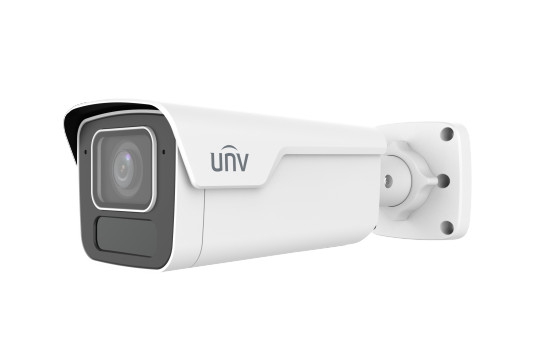

| Model | IPC2B24SA-AHDZK-PI-II |
| Camera |
| Max Resolution | 4 MP |
| Sensor | 1/2.8" CMOS |
| Min.Illumination | Colour: 0.003 lux(F1.6,AGC ON) 0 lux with IR |
| Day/Night | IR-cut filter with auto switch(ICR) |
| Shutter | Auto/Manual, 1 to 1/100000s |
| WDR | 130 dB |
| Adjustment Angle | Pan:0° to 360° Tilt:0° to 90° Rotate:0° to 360° |
| S/N | >56 dB |
| Lens |
| Focal Length | 2.7 to 13.5 mm |
| Optical Zoom | 5X |
| Iris | F1.6 |
| Field of View(H) | 98.7°~31° |
| Field of View(V) | 52.6°~18° |
| Field of View(D) | 116.5°~35.8° |
| Iris Type | P-iris |
| DORI |
| DORI Distance | Lens(mm) | Detect(m) | Observe(m) | Recognize(m) | Identify(m) |
| 2.7~13.5 | 74.3m(243.6ft)~229.5m(753.0ft) | 29.7m(97.4ft)~91.8m(301.2ft) | 14.9m(48.7ft)~45.9m(150.6ft) | 7.4m(24.4ft)~23.0m(75.3ft) |
| Illuminator |
| Illumination Distance(IR) | 80m(262 ft) |
| IR On/Off Control | Auto/Manual |
| Video |
| Frame Rate-Main Stream | 4MP(2688 * 1520), Max 60fps |
| Video Compression | Ultra 265,H.265,H.264, MJPEG |
| Frame Rate-Sub Stream | 2MP(1920 * 1080),Max 60fps |
| Video Bit Rate | 128 Kbps to 16 Mbps |
| U-code | Support |
| ROI | Up to 8 areas |
| Privacy Mask | Up to 8 areas(8 blacks/ 8 mosaics) |
| Video Stream | Triple Streams |
| OSD | Up to 10 OSDs |
| Frame Rate-Third Stream | D1(720 * 576), Max 60fps |
| Image |
| White Balance | Auto, Outdoor,Fine Tune,Sodium Lamp, Locked,Auto2 |
| Digital Noise Reduction | 2D/3D DNR |
| Flip | Flip Vertical,Flip Horizontal, Normal, 180°,90°Clockwise,90°Anti-clockwise |
| HLC | Support |
| BLC | Support |
| Defog | Digital Defog |
| Intelligent |
| People Counting | Support People Flow Counting and Crowd Density Monitoring |
| Exception Detection | Object Removed, Object Left Behind |
| Smart Intrusion Prevention | Cross line detection,intrusion detection,enter area detection, leave area detection(support false alarm filtering and the classification of human, non-motor vehicle and vehicle) |
| Events |
| Basic Detection | Motion Detection, Audio Detection, Tampering Alarm, Ultra Motion Detection |
| General Function | Watermark,IP Address Filtering,Access Policy,ARP Protection,RTSP Authentication,User Authentication,HTTP Authentication,Alarm Input,Alarm Output |
| Audio |
| Audio Compression | G.711U,G.711A |
| Audio Bitrate | 128 Kbps |
| Two-way Audio | Support |
| Suppression | Support |
| Sampling Rate | 16 kHz |
| Storage |
| Edge Storage | Micro SD, up to 512 GB |
| Network Storage | ANR, NAS(NFS) |
| Network |
| Protocols | SSH,IGMP,RTP,RTCP,SMTP,IPv4,IPv6,ICMP,ARP,TCP,UDP,DHCP,PPPoE,RTSP,RTMP, DNS,DDNS,NTP,FTP,UPnP,HTTP,HTTPS,802.1x,SNMP,QoS,SSL/TLS |
| Compatible Integration | ONVIF(Profile S, Profile G, Profile T, Profile M),API,SDK |
| User/Host | Up to 32 users.3 user levels: administrator, common user and operator |
| Security | TLS 1.3, Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF |
| Client | UNV-Link, UNV-Link Pro, EZStation |
| Web Browser | Plug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+ |
| Interface |
| Audio I/O | 1 Input:impedance 1 kΩ,amplitude 2.5 V[p-p],1 Output:impedance 600Ω,amplitude 2.5 V[p-p] |
| Alarm I/O | 1/1 |
| Serial Port | 1 channel RS485 interface |
| Built-in Mic | Built-in twomics |
| Built-in Speaker | N/A |
| Network | 1xRJ45 10 M/100 M Base-TX Ethernet |
| Certification |
| EMC | CE-EMC(EN 55032,EN 61000-3-3,EN IEC 61000-3-2,EN 50130) FCC-SDoC(47 CFR Part15, Subpart B) |
| Safety | CE LVD(EN IEC 62368-1) UL(UL 62368-1) |
| Environment | CE-RoHS(2011/65/EU;(EU)2015/863); WEEE(2012/19/EU) |
| Protection | IP67(IEC 60529) IK10(IEC 62262) |
| General |
| Power | DC12V(±25%),PoE(IEEE 802.3af) |
| Power Consumption | Max 10W |
| Power Interface | 05.5 mm coaxial power plug |
| Dimensions | 268x96x86mm(10.5"x3.7"x3.4")(LxWxH) |
| Weight | 1kg(2.2lb) |
| Working Environment | -30℃ to 60℃(-22°F to 140°F),Humidity:≤95% RH(non-condensing) |
| Storage Environment | 40℃ to 70℃(-40°F to 158°F),Humidity:≤95% RH(non-condensing) |
| Surge Protection | 6KV |
| Reset Button | Support |
| Heater | N/A |
