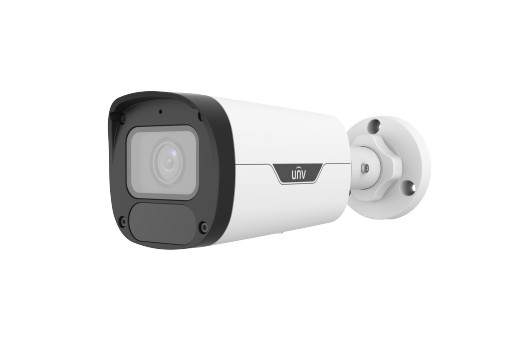

| Model | IPC2322SB-ADEZK-I0 |
| Camera |
| Max Resolution | 2 MP |
| Sensor | 1/2.8" progressive scan, CMOS |
| Min. Illumination | Colour: 0.003 lux (F1.6, AGC ON) 0 lux with IR on |
| Day/Night | IR-cut filter with auto switch (ICR) |
| Shutter | Auto/Manual, 1 ~ 1/100000s |
| Adjustment Angle | Pan: 0 ° ~ 360 ° , Tilt: 0 ° ~ 90 ° , Rotate: 0 ° ~ 360 ° |
| S/N | >52 dB |
| WDR | 120 dB |
| Lens |
| Focal Length | 2.8 ~ 12 mm AF automatic focusing and motorized zoom lens |
| Iris Type | Fixed |
| Iris | F1.6 |
| Field of View (H) | 103.6 ° ~29.4 ° |
| Field of View (V) | 54.8 ° ~18.7 ° |
| Field of View (D) | 107.9 ° ~33.8 ° |
| DORI |
| DORI Distance | Lens(mm) | Detect(m) | Observe(m) | Recognize(m) | Identify(m) |
| 2.8mm ~ 12mm | 43.4m(142.5ft), 186.2m(610.9ft) | 17.4m(57.0ft), 74.5m(244.4ft) | 8.7m(27.5ft), 37.2m(122.2ft) | 4.3m(14.3ft), 18.6m(61.1ft) |
| Illuminator |
| Supplemental Light | IR |
| Illumination Distance (IR) | 50 m (164.0 ft) |
| Wavelength | 850 nm |
| IR On/Off Control | Auto/Manual |
| Video |
| Video Compression | Ultra 265, H.265, H.264, MJPEG (Configurable & Controllable) |
| H.264 Code Profile | Baseline profile, Main profile, High profile |
| Live Video & Recording mode | 2MP (1920*1080), Max 30fps; 720P (1280*720), Max 30fps (Configurable); D1 (720*576);CIF |
| Frame Rate | Main Stream: 2MP (1920*1080), Max 30fps; 720P (1280*720), Max 30fps; Sub Stream: 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps; |
| Video Bit Rate | 128 Kbps to 6144 Kbps ( Configurable & Controllable) |
| Stream Encryption | AES 256-bit Encryption |
| 9:16 Corridor Mode | Support |
| Ucode | Support |
| OSD | Up to 4 OSDs |
| Privacy Mask | Up to 4 areas |
| ROI | Support |
| Video Stream | Dual streams |
| Image |
| White Balance | Auto white Balance (AWB), Outdoor, Fine tune, Sodium lamp, Locked, Auto2, AGC, Anti Flicker |
| Digital Noise Reduction | 2D/3D DNR |
| Smart IR | Support |
| Flip | Normal, Flip vertical, Flip horizontal, 180 ° , 90 ° Clockwise, 90 ° Anticlockwise |
| Dewarping | N/A |
| HLC | Support |
| BLC | Support |
| Defog | Digital defog |
| Intelligent |
| Smart intrusion Prevention | Motion detection, Ultra motion detection, Tampering alarm, Audio detection, Cross line (based on human body detection), Intrusion (based on human body detection) |
| General Function | Watermark, IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication, HTTP authentication |
| Event | Memory Error, illegal Login, FTP upload, SMTP upload, HTTP Notification, SD card Recording, Snapshot, Lens Block, Alarm input & output, Intelligent analytics |
| Audio |
| Audio Compression | G.711U, G.711A |
| Audio Bitrate | 64 Kbps |
| Bi-directional Audio | Support |
| Suppression | Support |
| Sampling Rate | 8 kHz |
| Storage |
| Edge Storage | Micro SD, up to 512 GB |
| Network Storage | ANR, NAS (NFS) |
| Network |
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, PPPoE, NTP, FTP, UPnP, HTTP, HTTPS, 802.1x, SMTP, SSL/TLS, QoS, SNMP |
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API, SDK, Tools, Library |
| User/Host | Up to 32 users, 2 user levels: administrator and common user |
| Security | Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF |
| Client | EZStation, EZView, EZLive, IOS, Android |
| Web Browser | Plugin required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+, Plugin free live view: Chrome 57+, Firefox 58+, Edge 16+ |
| Interface |
| Audio I/O | 1 Input: impedance 35 k Ω , amplitude 2 V [pp], 1 Output: impedance 600 Ω , amplitude 2 V [pp] |
| Alarm I/O | 1/1 |
| Serial Port | N/A |
| Built-in Mic | Support |
| Built-in Speaker | N/A |
| WIFI | N/A |
| Network | 1 × RJ45 10 M/100 M BaseTX Ethernet |
| Video Output | N/A |
| Certification |
| EMC | CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035) FCC (FCC 47 CFR part15 B) |
| Safety | CE LVD (EN 62368-1) CE: EN 60950-1, UL: UL60950-1 FCC: FCC Part 15 , CB (IEC 62368-1) UL/CUL (UL 62368-1, CAN/CSA C22.2 No. 62368-1) |
| Environment | CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); |
| Ingress Protection | IP67 (IEC 60529:1989+AMD1:1999+AMD2:2013) |
| Vandal Resistant | IK10 (IEC 62262:2002) |
| General |
| Power | DC 12V±25%, PoE (IEEE 802.3af) |
| Power Consumption | Max 9.6W |
| Power Interface | ?5.5 mm coaxial power plug |
| Dimensions | 206 × 73 × 73mm (8.1” × 2.9” × 2.9”) (L x W x H) |
| Weight | 0.61kg(1.34lb) |
| Material | Metal |
| Working Environment | -30 ℃ to 60 ℃ (-22 ℉ to 140 ℉ ), Humidity: ≤ 95% RH (noncondensing) |
| Storage Environment | -30 ℃ to 60 ℃ (-22 ℉ to 140 ℉ ), Humidity: ≤ 95% RH (noncondensing) |
| Surge Protection | 6 KV |
| Reset Button | Support |
| Web Client Language | 4 Languages: English, Russian, Spanish, Vietnamese |
