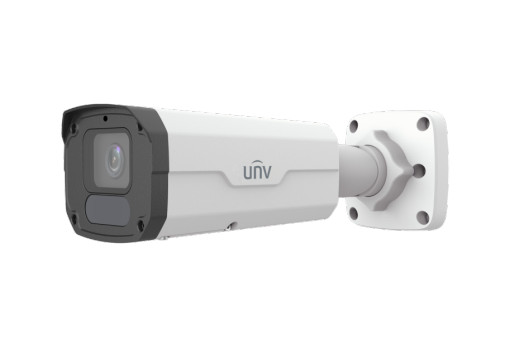

| Model | IPC2225SB-ADF28KM-CL |
| Camera |
| Sensor | 1/2.7", progressive scan , CMOS |
| Min. Illumination | Colour:0.003 lux (F1.6, AGC ON) 0 lux with IR |
| Day/Night | IR-cut filter with auto switch (ICR) |
| Shutter | Auto/Manual, 1 to 1/100000 s |
| WDR | 120 dB |
| Adjustment Angle | Pan: 0 ° to 360 °,Tilt: 0 ° to 90 ° Rotate: 0 ° to 360 ° |
| S/N | >56 dB |
| Lens |
| Focal Length | 2.8 mm |
| Iris | F1.6 |
| Field of View (H) | 108.5 ° |
| Field of View (V) | 57.9 ° |
| Field of View (D) | 141.1 ° |
| Iris Type | Fixed |
| DORI |
| DORI Distance | Lens(mm) | Detect(m) | Observe(m) | Recognize(m) | Identify(m) |
| 2.8mm | 63.0m(206.7ft) | 25.2m(82.7ft) | 12.6m(41.3ft) | 6.3m(20.7ft) |
| Illuminator |
| Illumination Distance (IR) | 80 m (262 ft) |
| IR On/Off Control | Auto/Manual |
| Wavelength | 850 nm |
| Video |
| Privacy Mask | Up to 4 areas per scene |
| Video Streaming | 50 Hz: 25 fps (2880*1620) ,60 Hz: 30 fps (2880*1620) |
| Frame Rate-Main Stream | 5MP (2880*1620), Max 30fps |
| Frame Rate-Sub Stream | 720P (1280*720), Max 30fps |
| Video Compression | Ultra 265, H.265, H.264, MJPEG |
| Video Bit Rate | 128 Kbps to 16 Mbps |
| ROI | Support |
| Video Stream | Dual streams |
| OSD | Up to 4 OSDs |
| Image |
| Defog | Digital defog |
| White Balance | Auto, Outdoor, Fine Tune, Sodium Lamp, Locked, Auto2 |
| Digital Noise Reduction | 2D/3D DNR |
| Smart IR | Support |
| Flip | Normal, Flip Vertical, Flip Horizontal, 180 ° , 90 ° Clockwise, 90 ° Anticlockwise |
| HLC | Support |
| BLC | Support |
| Heatwave Reduction | N/A |
| Intelligent |
| Smart Intrusion Prevention | Cross line detection, intrusion detection (support false alarm filtering and the classification of human and vehicle) |
| Events |
| Basic Detection | Motion detection, Ultra motion detection (based on human body and vehicle detection), Tampering alarm, Audio detection |
| General Function | Watermark, IP Address Filtering, Access Policy, ARP Protection, RTSP Authentication, User Authentication, HTTP authentication, Alarm input, Alarm output |
| Audio |
| Audio Compression | G.711U, G.711A |
| Audio Bitrate | 128 Kbps |
| Two-way Audio | Support |
| Environment Noise Filtering | Support |
| Suppression | Support |
| Sampling Rate | 16KHZ |
| Storage |
| Edge Storage | Micro SD, up to 512 GB |
| Network Storage | ANR, NAS (NFS) |
| Network |
| Protocols | SSH, IGMP, RTP, RTCP, SMTP, IPv4, IPv6, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTSP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, 802.1x, SNMP, QoS, SSL/TLS |
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T, Profile M), SDK, API |
| User/Host | Up to 32 users. 3 user levels: administrator, common user and operator |
| Security | TLS 1.3, Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF |
| Client | EZStation, UNVLink, UNVLink Pro |
| Web Browser | Plug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+, Plug-in free live view: Chrome 57+, Firefox 58+, Edge 16+ |
| Interface |
| Audio I/O | 1 Input: impedance 1 k Ω , amplitude 2.5 V [pp], 1 Output: impedance 600 Ω , amplitude 2.5 V [pp] |
| Alarm I/O | 1/1 |
| Built-in Mic | Support |
| Network | 1 × RJ45 10 M/100 M BaseTX Ethernet |
| Certification |
| EMC | CE-EMC (EN 55032: 2015+A1:2020, EN 6100033: 2013+A1: 2019, EN IEC 6100032: 2019+A1: 2021, EN 55035: 2017+A11:2020) FCC (FCC CFR 47 part15 B, ANSI C63.42014) |
| Safety | CE LVD (EN 623681:2014+A11:2017) UL (UL 623681, 2nd Ed., Issue Date: 20141201) |
| Environment | CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006) |
| Protection | IP67 (IEC 60529:1989+AMD1:1999+AMD2:2013),IK10 (IEC 62262:2002) |
| General |
| Power | DC12V (±25%), PoE (IEEE 802.3af) |
| Power Consumption | Max 7W |
| Power Interface | ?5.5 mm coaxial power plug |
| Dimensions | 245 x 87 x 86mm (9.6” x 3.4” x 3.4”) (L x W x H) |
| Weight | 0.82kg(1.81lb) |
| Working Environment | -40 ℃ ~ 60 ℃ (22 ° F ~ 140 ° F), Humidity: 5%~95% RH (noncondensing) |
| Storage Environment | -40 ℃ ~ 70 ℃ (40 ° F ~ 158 ° F), Humidity: 5%~95% RH (noncondensing) |
| Web Client Language | 22 Languages: Traditional Chinese, English, Simplified Chinese, Polish, German, Russian, French, Korean, Dutch, Czech, Portuguese (Europe), Portuguese (Brazil), Japanese, Thai, Turkish, Spanish (Latin America), Spanish (Europe), Hungarian, Italian, Vietnamese, Arabic, Slovak |
