Home

All Products

IP Camera


IPC2124SB-AF28(36)K-DL2

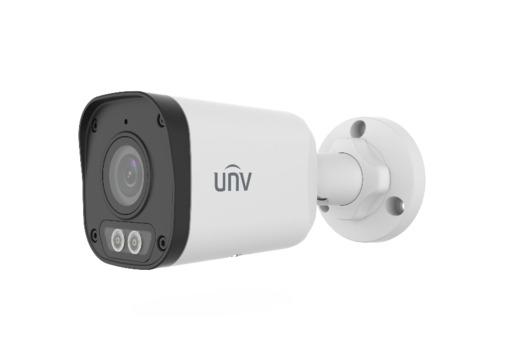

4MP HD Smart Dual Light Fixed Bullet Network Camera

? High quality image with 4 MP, 1/2.9" Progressive scan CMOS sensor
? 4 MP (2560 × 1440)@25/20 fps; 3 MP (2304 × 1296)@30/25 fps; 1080P (1920 × 1080)@30/25 fps
? Smart dual-light ensures high quality image
? Ultra 265, H.265, H.264
? Supports ultra motion detection
? Built-in mic
? Up to 60 m (196.8 ft.) IR and 50 m (164 ft.) warm light distance
? MicroSD, up to 512 GB
? IP67 and IK10 protection
? Supports PoE power supply
? Supports corridor mode

Specification

Download

How to buy

Model	IPC2124SB-AF28K-DL2	IPC2124SB-AF36K-DL2
Camera
Max Resolution	4 MP
Sensor	1/2.9" Progressive scan CMOS
Min. Illumination	Color: 0.006 Lux (F1.6, AGC ON), 0 Lux with light
Day/Night	IR-cut filter with auto switch (ICR); Automatically Removable IR-cut filter
Shutter	Auto/Manual, 1/5 ~ 1/100000s
Adjustment Angle	Pan: 0° to 360°, Tilt: 0° to 90°, Rotate: 0° to 360°
S/N	>52 dB
WDR	DWDR
Lens
Focal Length	2.8 mm	3.6 mm
Iris Type	Fixed
Iris	F1.6
Field of View (H)	93.2°	77.4 °
Field of View (V)	51.5°	41.9°
Field of View (D)	108.0°	90.5°
Lens Type	Fixed
DORI
DORI Distance (Lens)	2.8 mm	3.6 mm
DORI Distance (Detect)	63.0 m (206.7 ft.)	90.0 m (295.3 ft.)
DORI Distance (Observe)	25.2 m (82.7 ft.)	36.0 m (118.1 ft.)
DORI Distance (Recognize)	12.6 m (41.3 ft.)	18.0 m (59.1 ft.)
DORI Distance (Identify)	6.3 m (20.7 ft.)	9.0 m (29.5 ft.)
Illuminator
Supplemental Light	Dual light
Illumination Distance (IR)	60 m (196.8 ft.)
Illumination Distance (Warm Light)	50 m (164 ft.)
Wavelength	850 nm
Video
Video Compression	Ultra 265, H.265, H.264
H.264 Code Profile	Baseline profile, Main profile, High profile
Frame Rate	Main Stream: 4 MP (2560 × 1440), max. 25 fps; 3 MP (2304 × 1296), max. 30 fps; 1080P (1920 × 1080), max. 30 fps; 720P (1280 × 720), max. 30 fpsSub Stream: D1 (720 × 576), max. 30 fps; 640 × 360, max. 30 fps; 2CIF (704 × 288), max. 30 fps; CIF (352 × 288), max. 30 fps;
Video Bit Rate	128 Kbps to 6144 Kbps (Configurable: CBR/VBR)
U-code	Support
OSD	Up to 4 OSDs
Privacy Mask	Up to 4 areas
ROI	Support
Video Stream	Dual streams
White Balance	Auto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2, Area white balance, Exposure
Digital Noise Reduction	2D/3D DNR
Smart IR	Support
Flip	Normal, Flip vertical, Flip horizontal, 180°, 90° Clockwise, 90° Anti-clockwise
Dewarping	N/A
HLC	Support
BLC	Support
Defog	Digital defog
Image Stabilization	N/A
Events
Basic Detection	Cross line (based on human body and Vehicle detection), Intrusion (based on human body and Vehicle detection), Ultra motion detection, Motion detection, Audio detection, Tampering alarm
General Function	Watermark, IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication, HTTP authentication, No SD card: SD card full: SD card error: networkdisconnection; IP conflict; illegal access, voltage detection; security exception
Audio
Audio Compression	G.711U, G.711A
Audio Bitrate	64 Kbps
Two-way Audio	N/A
Suppression	Support
Sampling Rate	8 kHz
Storage
Edge Storage	MicroSD, up to 512 GB
Network Storage	ANR, NAS (NFS)
Network
Protocols	IP Versions: IPv4, Multicast / Group Communication: IGMP, Core Transport Protocols: TCP, UDP, ARP, ICMP, Media Streaming Protocols: RTP, RTSP, RTCP, RTMP, Multicast Dynamic Addressing & Name Resolution: DNS, DDNS, DHCP, Time Synchronization: NTP, UPnP, Web & Secure Access: HTTP, HTTPS, P2P, SMTP, FTP, SFTP, QoS, SSL/TLS, SNMP
Compatible Integration	ONVIF (Profile S, Profile G, Profile T) , API/CGI, SDK
User/Host	Up to 32 users. 3 user levels: administrator, common user and operator
Security	Password Protection, IEEE802.1X(EAP-TLS), Strong Password, SSL Encryption, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Chained Fingerprint, Digest Authentication for HTTP, IP Filtering, TLS 1.2, WSSE and Digest Authentication for ONVIF
Client	EZStation, APP
Web Browser	Plug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+, Plug-in free live view: Chrome 57+, Firefox 58+, Edge 16+
Interface
Audio I/O	N/A
Alarm I/O	N/A
Serial Port	N/A
Built-in Mic	Support
Built-in Speaker	N/A
WIFI	N/A
Network	1 × RJ45 10 M/100 M Base-TX Ethernet
Recording Session Buffer	Yes
Video Output	N/A
Certification
EMC	CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 50130-4)FCC (FCC 47 CFR part15 B)
Safety	CE LVD (EN 62368 1)UL/CUL (UL 62368 1, CAN/CSA C22.2 No. 62368 1)
Environment	CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU);
Protection	IP67 (IEC 60529)IK10 (IEC 62262)
General
Power	DC 12 V±25%, PoE (IEEE 802.3af)
Power Consumption	Max. 3.9 W
Power Interface	?5.5 mm coaxial power plug
Material	Metal
Storage Environment	-30 ℃ to 60 ℃ (-22 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing)
Working Environment	-30 ℃ to 60 ℃ (-22 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing)
Surge Protection	4 KV
Reset Button	Support
Web Client Language	4 Languages: English, Russian, Spanish, Vietnamese
